Roof

Roof is where the electrodes enter the electric arc furnace, and cooled by water-cooled panels.


Sections of EAF Roof

There are three main parts of Roof Structure

  1. EAF Elbow
  2. Roof Panels
  3. Center Ring / Center Piece

EAF Roof Pictures (electric arc furnace roof)

(Click on the pictures for larger sizes. )

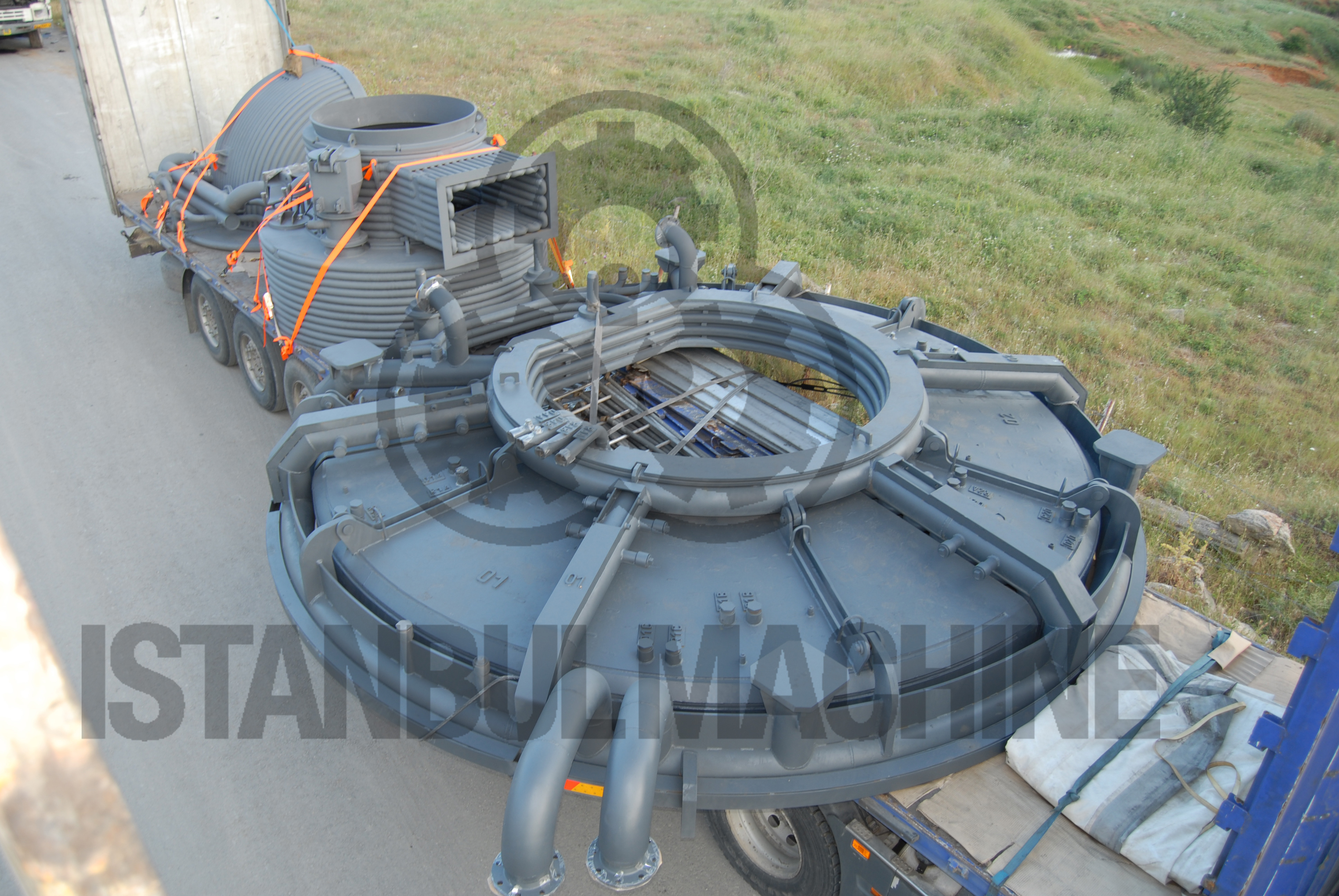

Electric Arc Furnace Roof

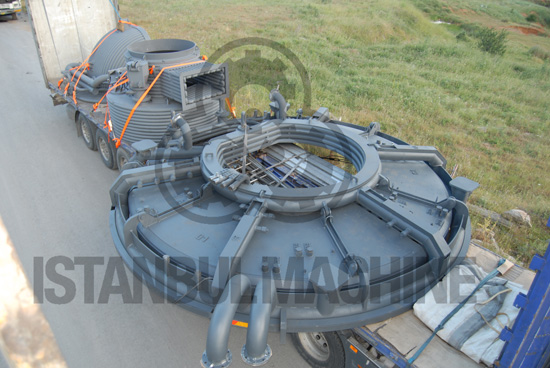

Electric Arc Furnace Roof

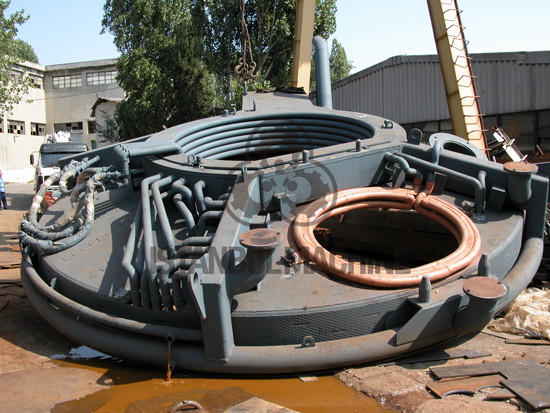

EAF Roof

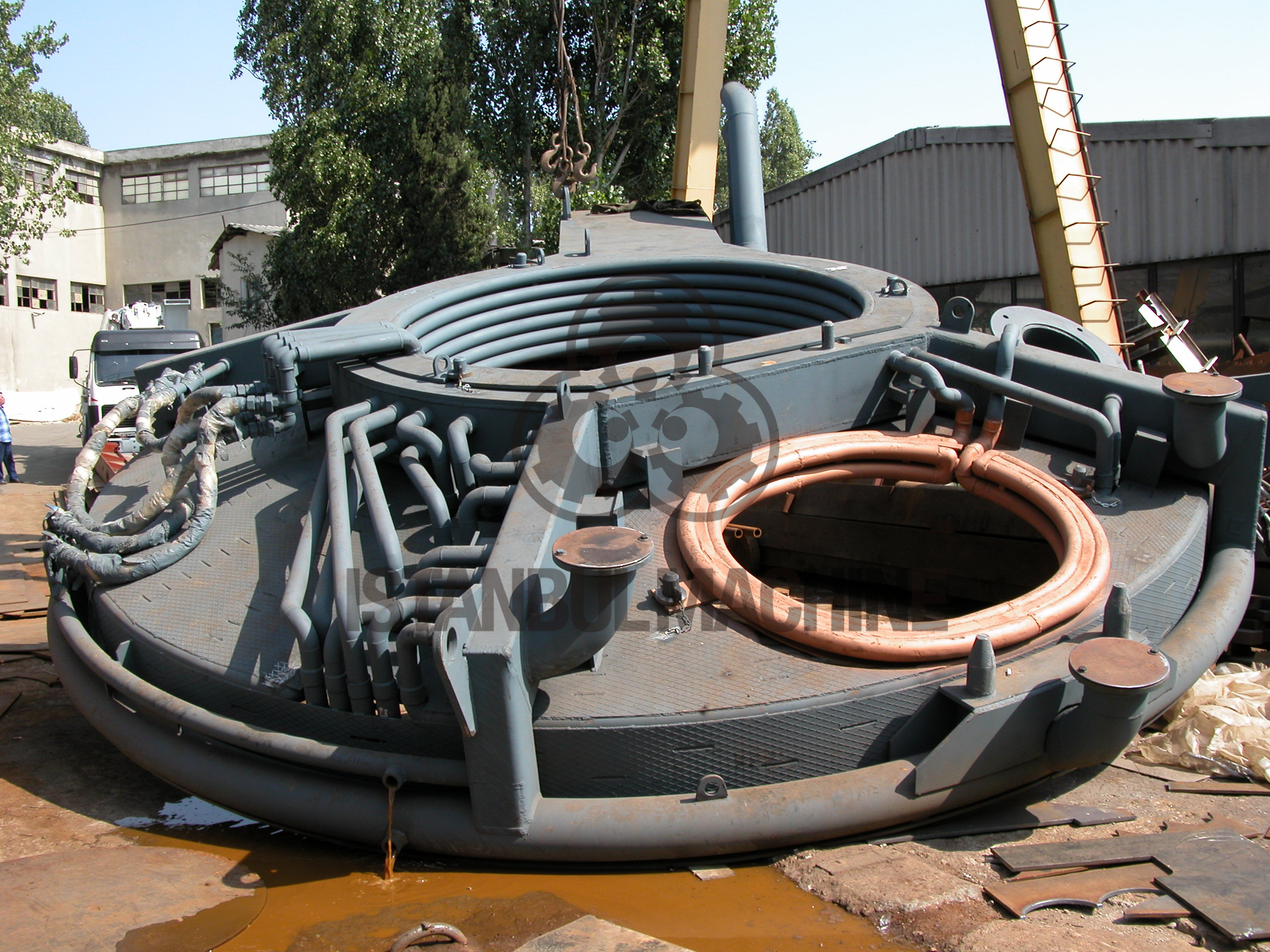

Roof EAF

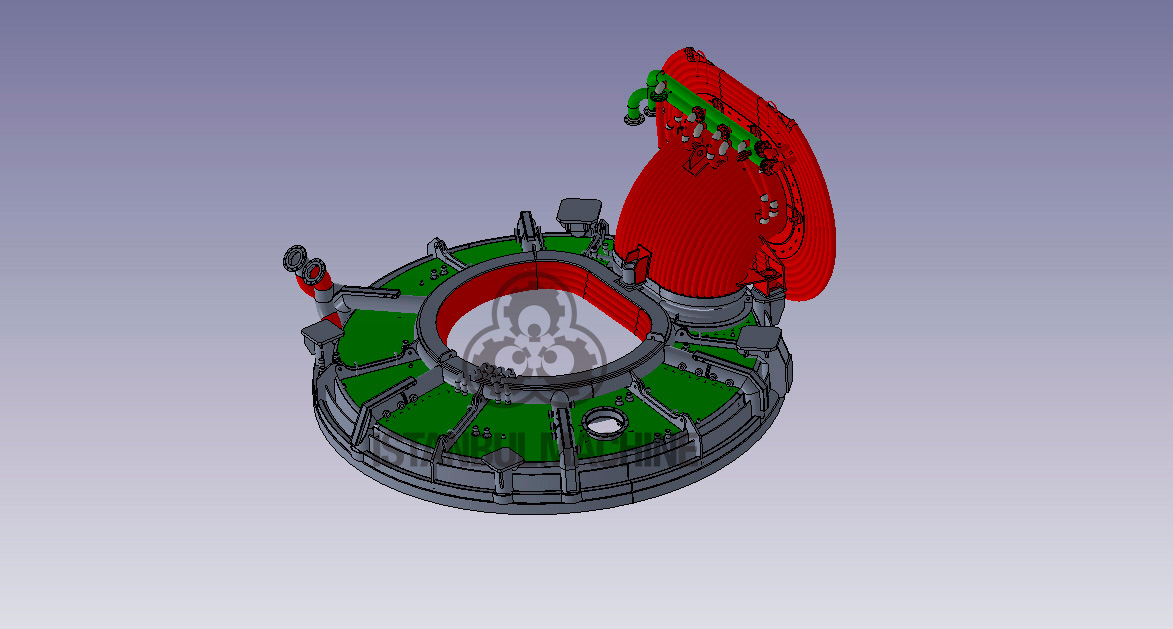

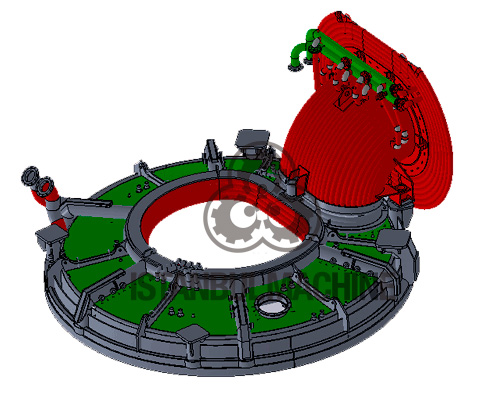

EAF Roof Solid Drawing

EAF Roof
EAF Roof





Roof Dimensions (Electric Arc Furnace Roof Dimensions )

We manufacture according to customers' technical drawings and requirements.
