Caps

Butt Weld Return Cap is a pipe fitting that is manufactured to connect pipe(s) by welding on its end(s). Caps allow change in direction (180 degrees) of pipe flow, therefore caps are used for transportation (or panels) of fluids; water, oil, steam, chemicals, gas, etc.



Types of caps

There are two kinds of caps:

  1. Round Cap (Also called "Y Form Cap" or "Moon Shape Cap")
  2. Rectangular Cap (Also called "Z Form Cap" or "Standard Shape Cap")

Cap Pictures (180 Degree, butt weld return caps)

(Click on the pictures for larger sizes. )

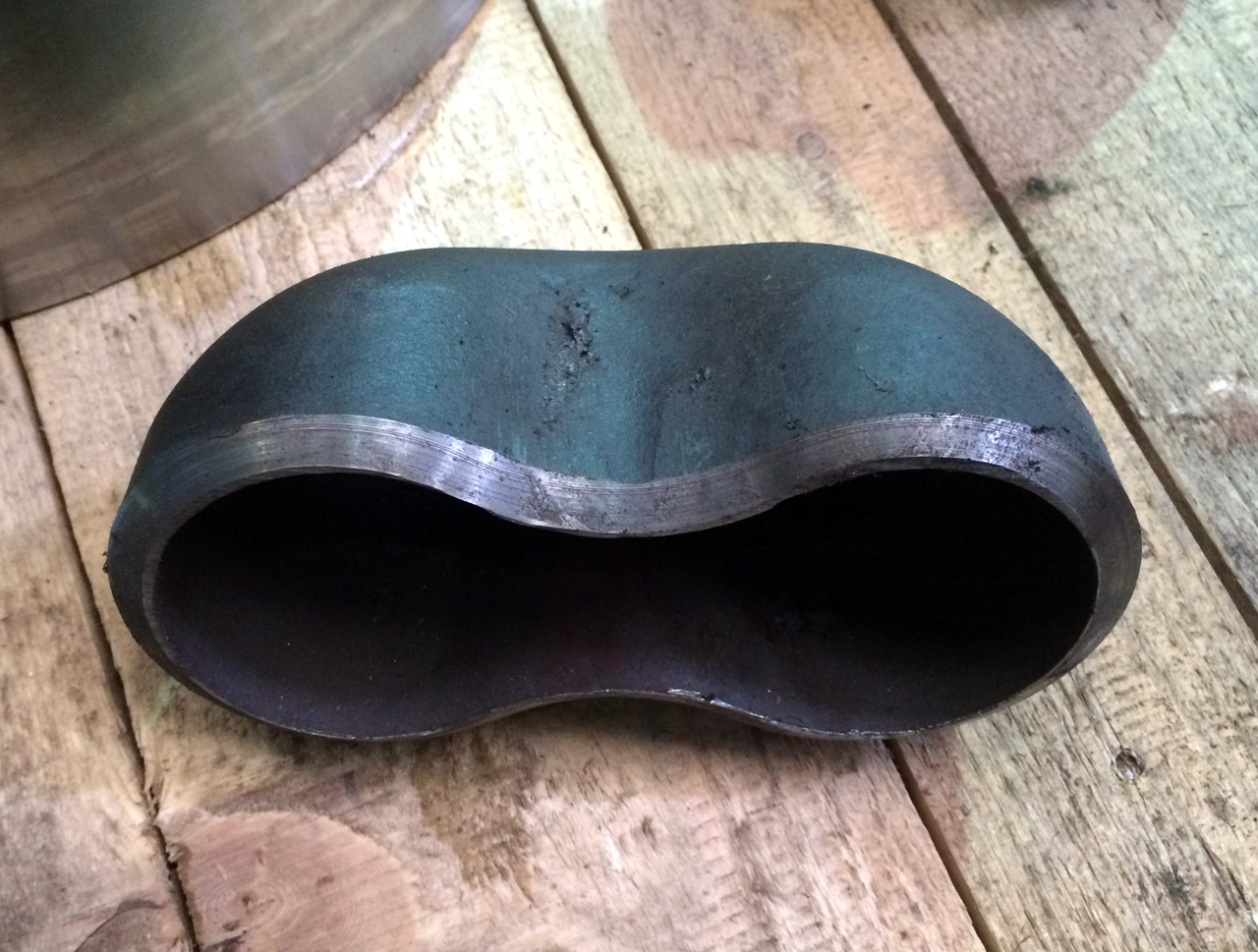

Steel Pipe End Cap Steel Pipe Return Cap 180 Degree

Cap Technical Drawings (X & Y forms)

(Sizes on caps drawings are example values.)

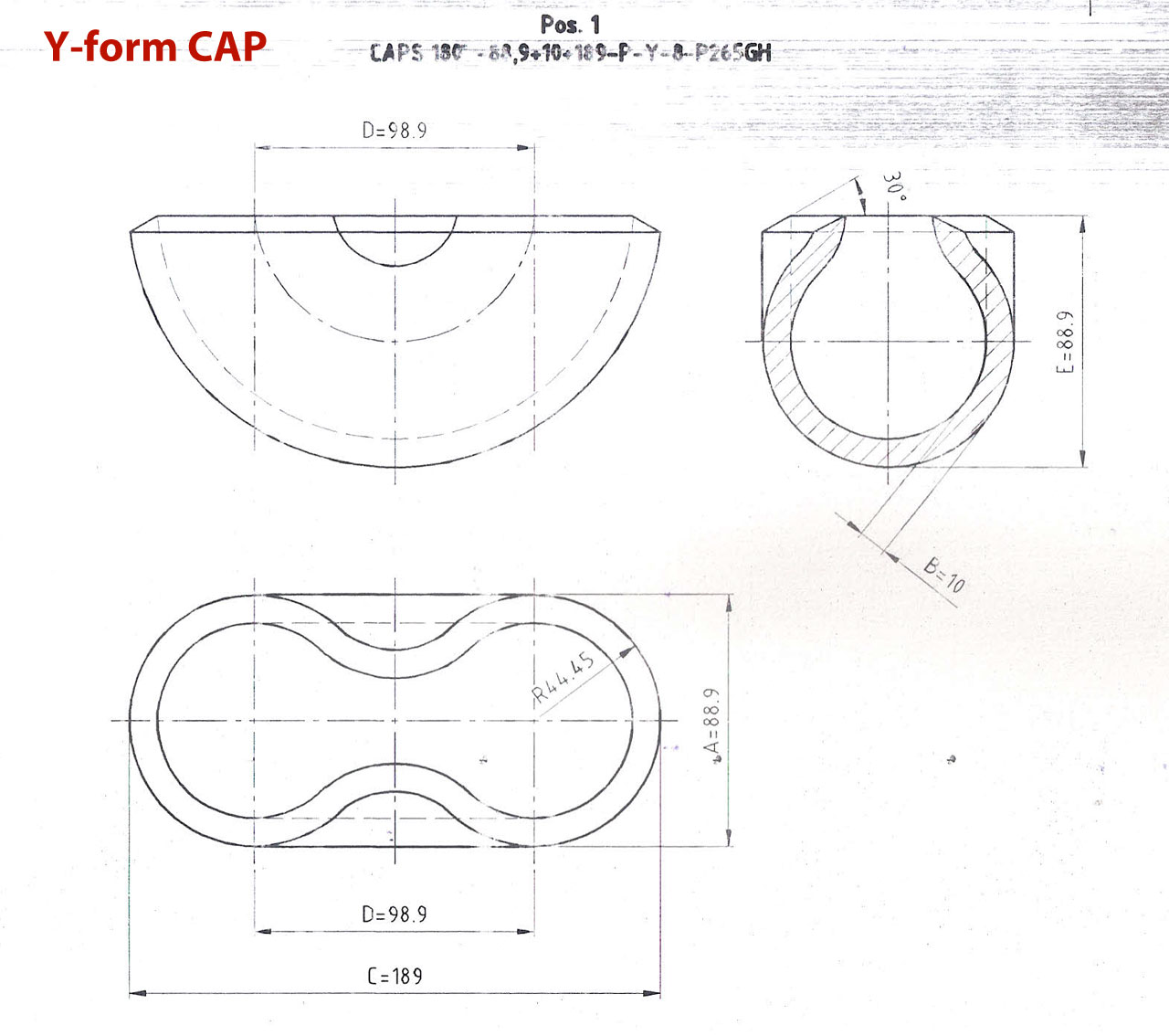

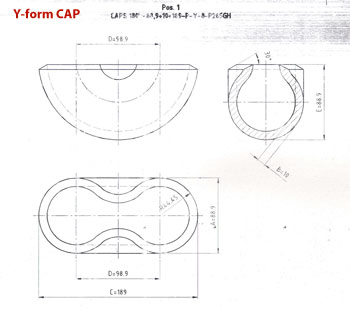

Steel Caps Y Form Steel Caps Y-form

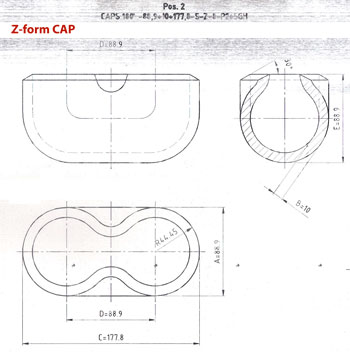

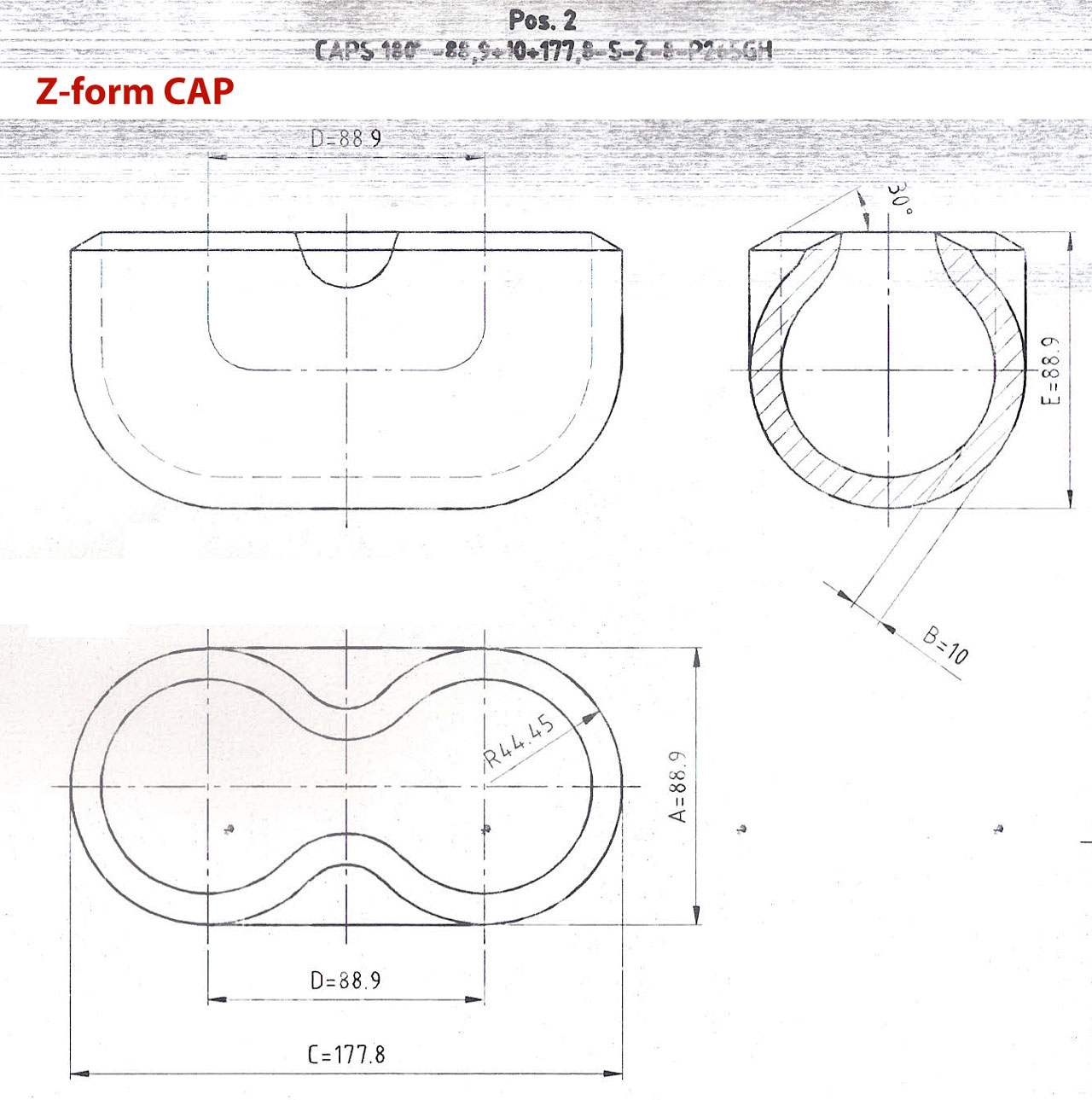

Steel Caps Z Form Steel Caps Z-form



Advantages of butt weld caps:

  • Less material less cost

    Butt welding of end caps connect pipes together requires 10%-75% less metal for pipe connection.

  • Less material less weight

    Since welded end caps require 10%-75% less material than flanged connection for pipes, the total weight is reduced.

  • Stronger & compact

    Welding is durable and takes up less space, allowing for greater design freedom.

  • Less friction, no pressure loss

    One of the best flow mechanisms, no need for sharp corner or pockets.

Manufacturing Details of End Caps

Steel Standards and Quality

Europe Germany UK Japan USA Int.
Standard EN 10025 DIN 17100 BS 4360 JIS 3101 ASTM ISO 630
Quality S235JR ST37-2 40A SS34 A283C Fe360B

Manufacturing Method

Cold Press
CFS (Cold Formed Steel)



Cap Dimensions (Butt weld Pipe Fitting)

We manufacture the sizes listed in the table below. Different sizes (not listed below) can also be manufactured depending on the size of the order.

Number     Diameter (mm)     Thickness (mm)     Type     Form     Explanation     Height (mm)     B (Length) (mm)
1 38 6 "Moon" Cap Y Adjacent 38 78
2 48.3 6 "Moon" Cap Y Adjacent 48 97
3 48.3 8 "Moon" Cap Y Adjacent 48 97
4 51 6 "Moon" Cap Y Adjacent 51 102
5 60.3 6 "Moon" Cap Y Free from Nodes&Knots 60 120
6 60.3 6 "Moon" Cap Y Adjacent 60 120
7 60.3 8 "Moon" Cap Y Adjacent 60 120
8 60.3 8 "Moon" Cap Y Elliptic/Free from Nodes&Knots 68 136
9 60.3 10 "Moon" Cap Y Adjacent 60 120
10 60.3 10 CAP Z Adjacent 60 120
11 60.3 6 "Moon" Cap Y 10 mm separated 60 130
12 60.3 8 "Moon" Cap Y 10 mm separated 60 130
13 60.3 6 "Moon" Cap Y 20 mm separated 60 140
14 70 10 "Moon" Cap Y 8,8 MM 70 140
15 70 12 CAP Z Adjacent 70 140
16 73 8 "Moon" Cap Y Adjacent 74 146
17 73 8 CAP Z Adjacent 74 146
18 73 10 "Moon" Cap Y Adjacent 74 146
19 73 10 CAP Z Adjacent 74 146
20 73 12 "Moon" Cap Y Adjacent 74 146
21 73 12 CAP Z Adjacent 74 146
22 73 10 "Moon" Cap Y 12mm separated 74 158
23 73 10 CAP Z 12mm separated 74 158
24 73 8 "Moon" Cap Y 17 mm separated 74 163
25 73 10 "Moon" Cap Y 17mm separated 74 163
26 76 6 "Moon" Cap Y Adjacent 76 152
27 76 8 CAP Z Adjacent 76 152
28 76 8 "Moon" Cap Y Adjacent 76 152
29 76 10 CAP Z Adjacent 76 152
30 76 10 "Moon" Cap Y Adjacent 76 152
31 76 12 CAP Z Adjacent 76 152
32 76 12 "Moon" Cap Y Adjacent 76 152
33 76 8 CAP Z 20 mm separated 76 172
34 76 8 "Moon" Cap Y 20 mm separated 76 172
35 76 10 "Moon" Cap Y 10 mm separated 76 162
36 76 10 "Moon" Cap Y 20 mm separated 76 172
37 76 10 CAP Z 20 mm separated 76 172
38 82.5 8 "Moon" Cap Y Adjacent 83 165
39 82.5 10 "Moon" Cap Y Adjacent 83 165
40 82.5 12 "Moon" Cap Y Adjacent 83 165
41 82.5 10 "Moon" Cap Y 10 mm separated 83 175
42 82.5 12 "Moon" Cap Y 10 mm separated 83 175
43 82.5 8 "Moon" Cap Y 20 mm separated 83 185
44 82.5 10 "Moon" Cap Y 20 mm separated 83 185
45 82.5 12 "Moon" Cap Y 20 mm separated 83 185
46 82.5 14 "Moon" Cap Y 20 mm separated 83 185
47 88.9 8 "Moon" Cap Y Adjacent 90 180
48 88.9 8 CAP Z Adjacent 90 180
49 88.9 10 "Moon" Cap Y Adjacent 90 180
50 88.9 10 CAP Z Adjacent 90 180
51 88.9 12 "Moon" Cap Y Adjacent 90 180
52 88.9 12 CAP Z Adjacent 90 180
53 88.9 8 "Moon" Cap Y 10 mm separated 90 190
54 88.9 8 CAP Z 10 mm separated 90 190
55 88.9 10 "Moon" Cap Y 10 mm separated 90 190
56 88.9 10 CAP Z 10 mm separated 90 190
57 88.9 12 "Moon" Cap Y 10 mm separated 90 190
58 88.9 12 CAP Z 10 mm separated 90 190
59 88.9 8 "Moon" Cap Y 20 mm separated 90 200
60 88.9 8 CAP Z 20 mm separated 90 200
61 88.9 10 "Moon" Cap Y 20 mm separated 90 200
62 88.9 10 CAP Z 20 mm separated 90 200
63 88.9 12 "Moon" Cap Y 20 mm separated 90 200
64 88.9 12 CAP Z 20 mm separated 90 200
65 76 8 "Moon" Cap Y 20 mm separated BAKIR 76 172
66 76 8 "Moon" Cap Y Adjacent 76 152
67 101.6 12 CAP Z Adjacent 102 203
68 114.3 12 CAP Z Adjacent 115 229
