Water Cooled Panels
Copper panels Shell provide longer life and better heat reduction for electric arc furnaces, in steelmaking process of Melt Shops

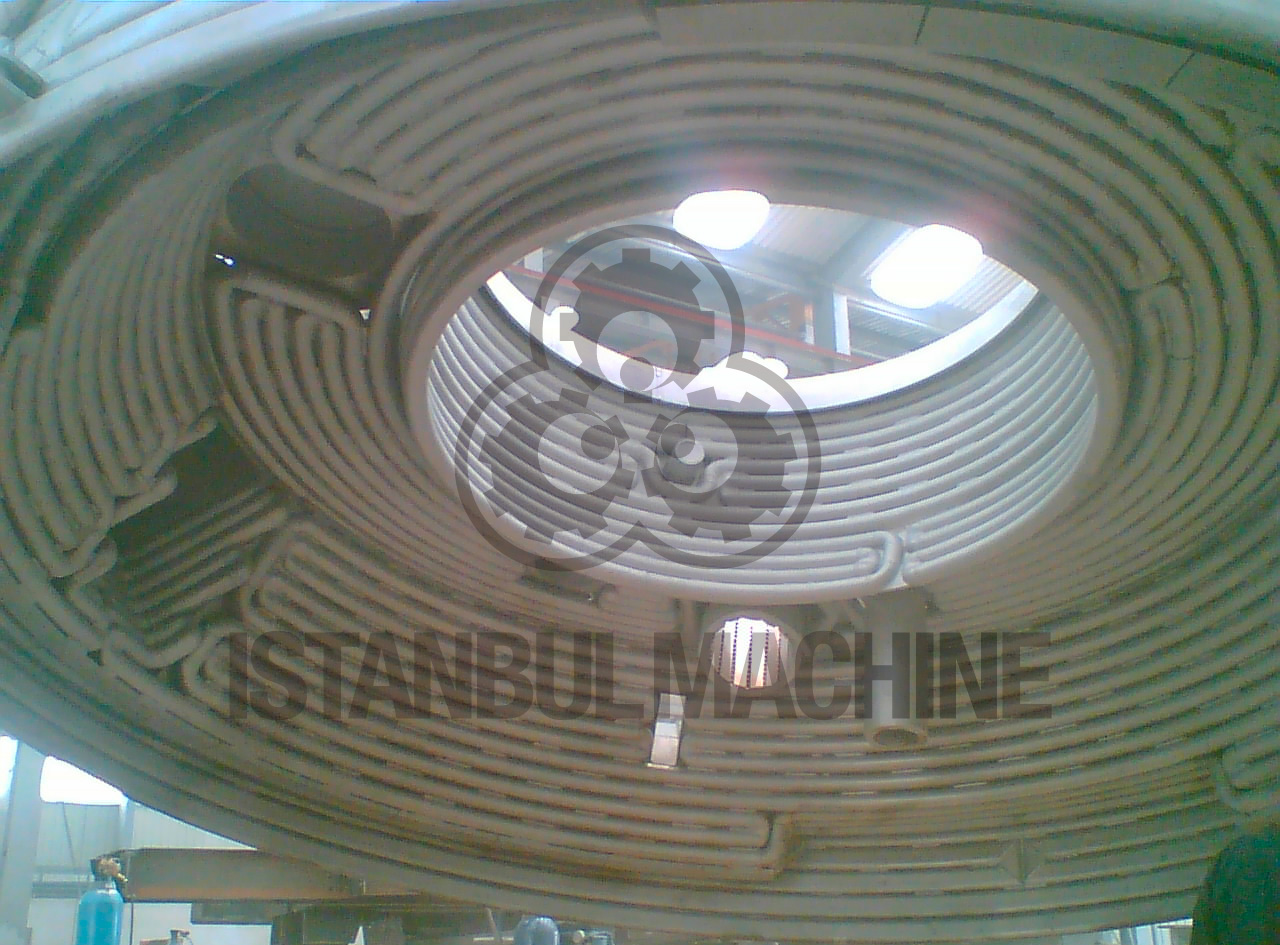

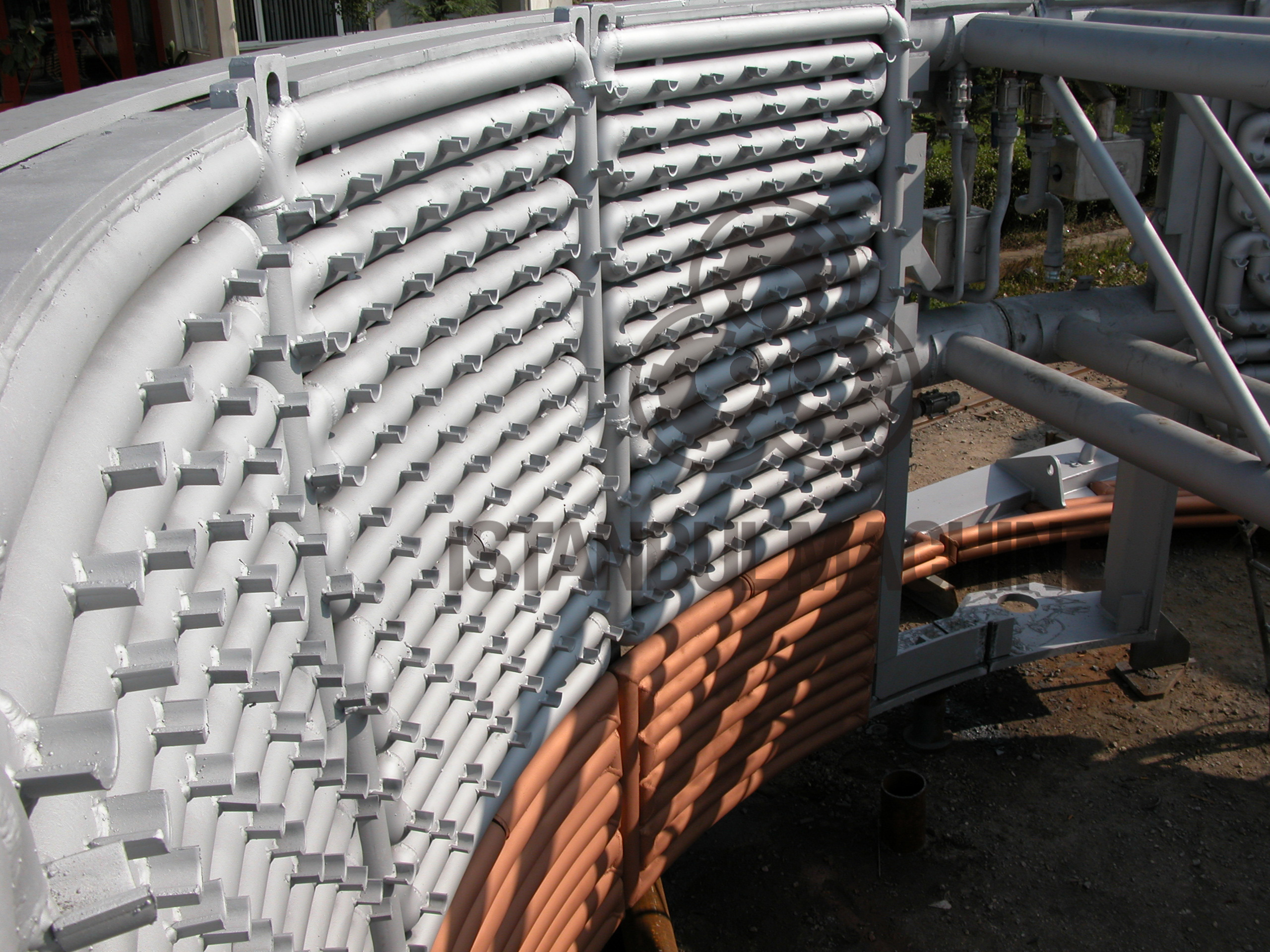

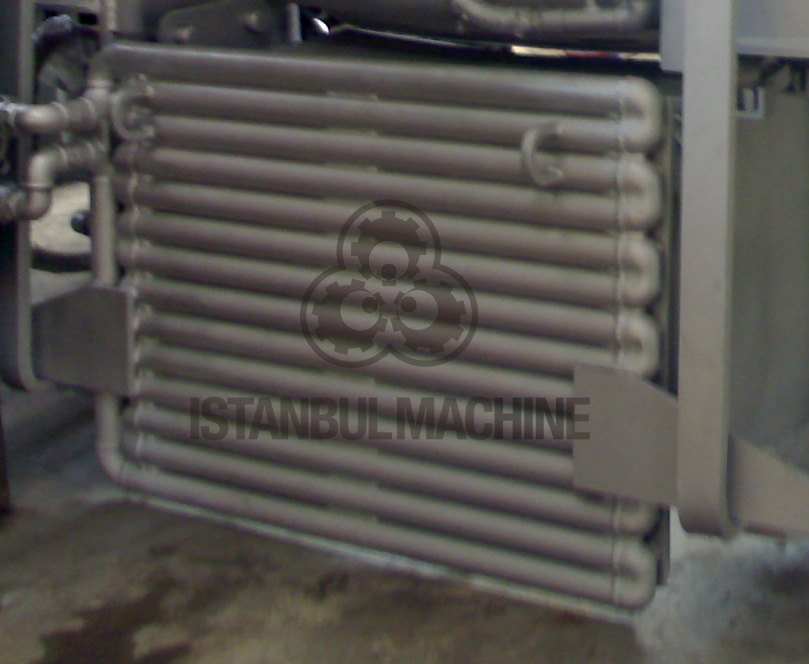

Water Cooled Panel Pictures (electric arc furnace panels)
(Click on the pictures for larger sizes. )
Panel Material Details
Certificates
- Material certificates are provided with every copper panel that we manufactured.
- Certificates of welding personel is also provided.
Optional Third Party Testing
Those tests of the panels are provided by third parties upon request.
- X Ray Tests for welding
- Magnetic Particle Inspection Test (for the areas where X ray testing can not be applied
Manufacturing Details of Water Cooled Steel Panels
Standard steel is written below, and for higher grade steel needs, we are using P265GH.
Steel Standards and Quality
| Europe | Germany | UK | Japan | USA | Int. | |
|---|---|---|---|---|---|---|
| Standard | EN 10025 | DIN 17100 | BS 4360 | JIS 3101 | ASTM | ISO 630 |
| Quality | S235JR | ST37-2 | 40A | SS34 | A283C | Fe360B |
Water Cooled Panel Dimensions (EAF Cooling Panel Dimensions )
We manufacture according to customers' technical drawings and requirements.
