CNG LPG Cylinder Mold

Mold is used as a cylinder body forming machine, and it can be used by many kinds of press machines.

References

The biggest LPG creator of Turkey, "Aygaz", uses our molds for body forming of their LPG cylinders. We also support local and international "LPG Producing Line (Plant, Factory) Manufacturers"

Notes

This is a relatively old technology (LPG gas tubes for home users) for the Turkish market since natural gas is commonly used in homes. We have a long experience manufacturing all different shapes of these molds to satisfy our customers' needs.

Video of Mold

Pictures of Mold

(Click on the picture for larger size. )

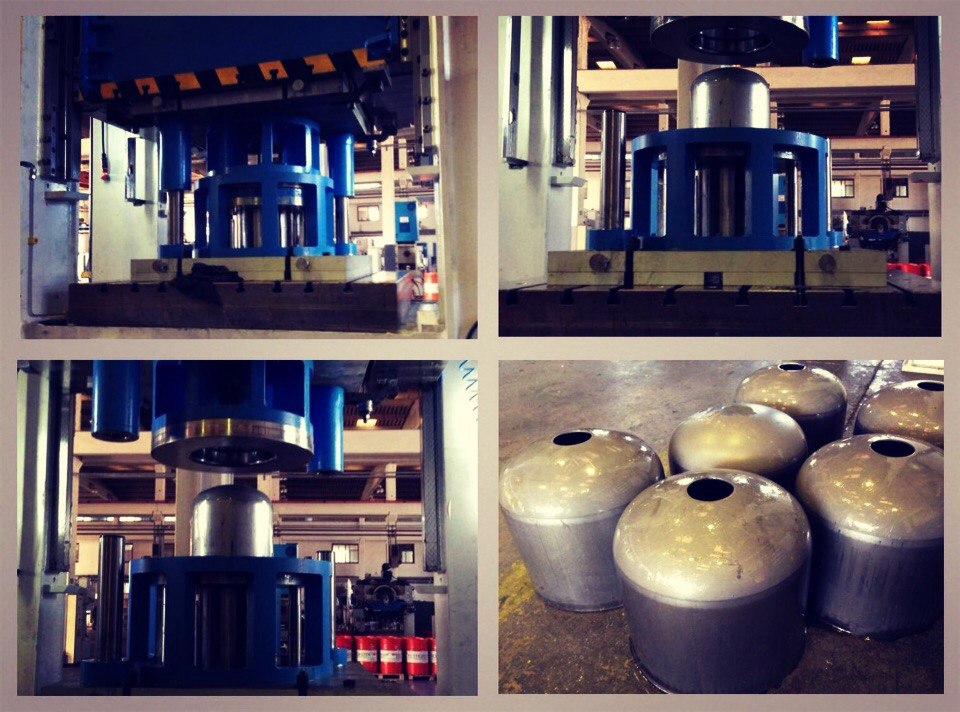

CNG LPG Cylinder Mold

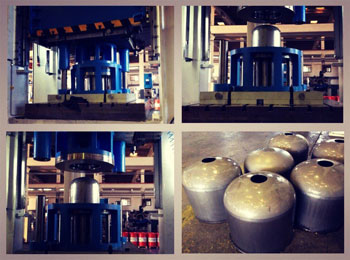

CNG LPG Cylinder Mold



Technical Details of CNG LPG Cylinder Mold

The Bottom Plate
ST42 Sheet Metal
Blades
1,2379
Plaster Ring
1,2379
Draining
1,2379
Shaft
1,2379
Colorets Blades
1,2379
Fuhrungs Axle
1,8620 Stoned
Fuhrungs Bush
Bronze (graphite)
Fuhrungs Shafts and Bush Casing
ST50
Extractor
ST50
Casing
ST87-41 Welded Construction
Extracting Springs
Vulkovan
Stamp Centering Ringbolts
4140- Hardened
Mechanical Stoppers
ST50
Bottom Bearing Stems
Case Hardening Steel – Hardened
